Guide for buy chicken meat packaging machine

Guide for buy chicken meat packaging machine

  • 2022-08-02


Coretamp offer a wide range of chicken packaging machine solutions, including whole chicken packaging, chicken cube packaging, vacuum packaging, modified atmosphere packaging and more.


Before choosing a machine model, you need to know the type of packaging, product size, and weight you want to pack. Welcome to consult us to get the best solution.

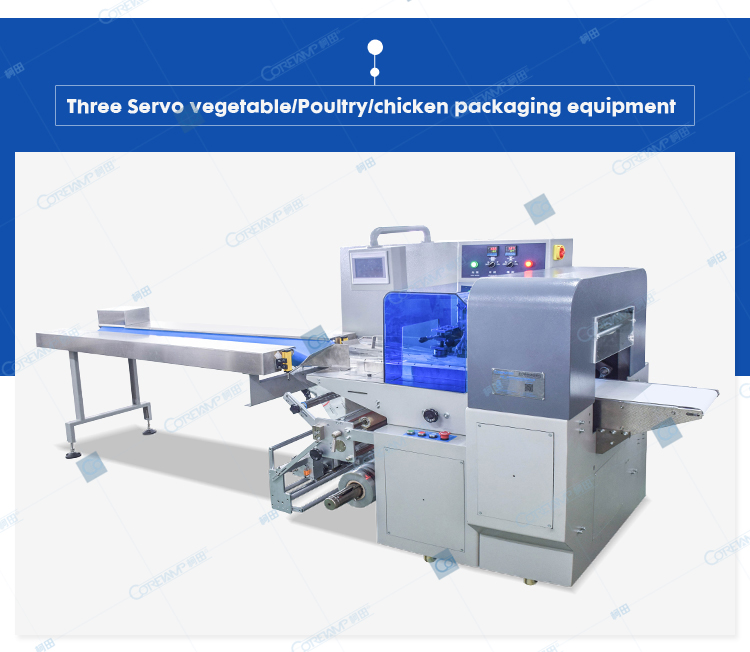

1. MODEL: VT-280X Flow wrap machine for chicken


Machine link: https://www.onepacking.com/chicken-meat-frozen-food-packaging-machine_p109.html


Three servo control flow packaging machine, which is suitable for packaging whole chicken, also available with tray box.

chicken packaging machine


The finished bags is pillow type, supports perforation, date printing and the addition of a labelling machine


chicken flow packaging

Machine Parameters:

(Type)

VT-280X
(Film width) max: 580mm
(Bag length) Arbitrarily
(Bag width) 60-280 mm
(Product height) Max.110 mm
(Film roll diameter) Max:380mm
(Packaging rate) 20-120 bag/min
(Power) 220V 50/60Hz 4.5KW
(Machine size) (L)4000×(W)960×(H)1550mm
(Machine quality) about:700KG
(Remarks) Optional air filling device/Optional angle folding device
(Film material)
(Film material) OPP、PE、PVC、OPP/CPP、PT/PE、KOP/CPP

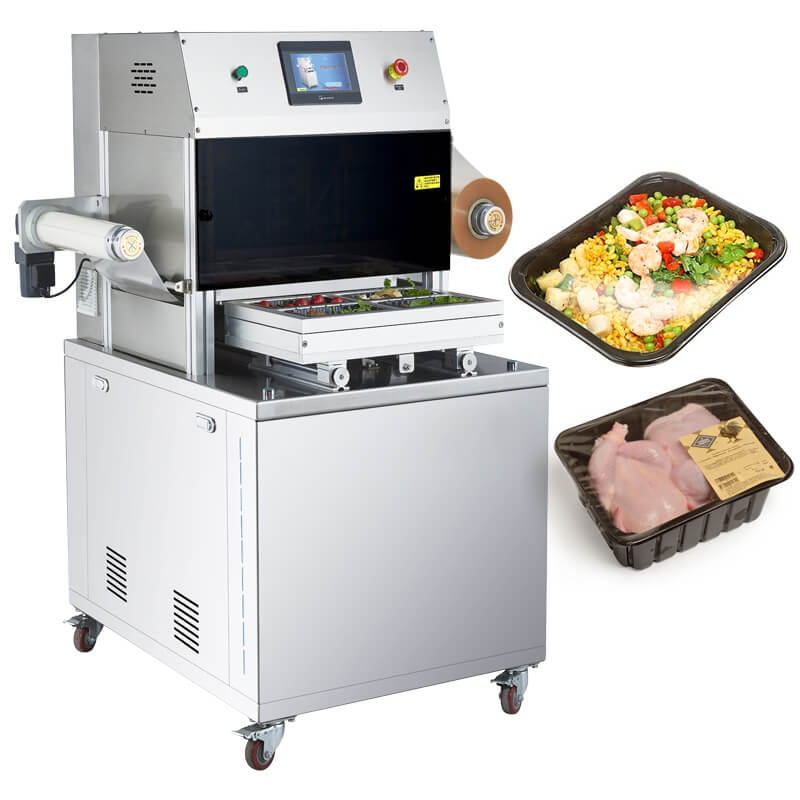

2. Model KT-400A Modified atmosphere packaging machine


Machine link: https://www.coretampack.com/modified-atmosphere-packaging-machine/


The vertical food modified atmosphere packaging machine is suitable for large and medium batch modified atmosphere packaging. It consists of an automatic mould, body and film feeding mechanism with a built-in high precision adjustable fresh food mixing system.


It supports both evacuation and air flow pushing atmosphere packaging methods.

It's suitable for packing chicken cube with tray




Parameter:

Model KT-400A
Name Modified atmosphere packaging machines

Maximum size of

the box

(mm)

220*150

Single cycle time

(seconds)

7~10

Packing speed

(box/hour)

700 servings/hour (one in and four out)

Residual oxygen rate

(%)

≤0.5%
Mixed gas error (%) ≤0.5%

Maximum roll film

(width*diameter mm)

310*260
Power (V/hz) ≈1400
Power (v/hz) 220/50
Total power (kw) 3
Air replacement method High-precision vortex air displacement
Power air source (MPa) 0.6~0.8

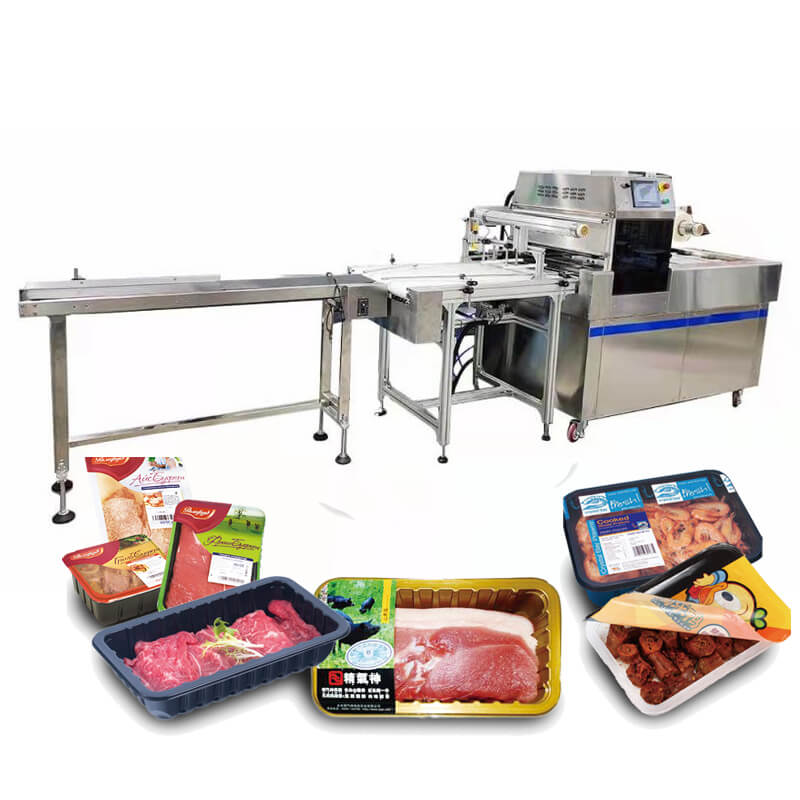

3. Model KT-580T Auto Flow Modified atmosphere packaging machine


Machine link: https://www.coretampack.com/modified-atmosphere-packaging-machine/


Adopt flow conveying packaging, output three trays at a time. No need to manually place trays, more efficient packaging. Suitable for businesses with high requirements for packaging speed and automation



Parameter:

Model DQ-580AT
Name Modified atmosphere packaging machines

Maximum width

of roll film

(mm)

580-630mm

Maximum roll film

(mm)

220

Gas distribution accuracy

(%)

≥99%
Distribution accuracy volatility±2%
Packing speed 7-8 (times/min)

Capacity

≈1400-1800 (box/hour)
Power (V/hz) 220/50
Total power 2.5-4 KW
Working Air Pressure 0.6-0.8 (Mpa)

Equipment size

L×W×H(mm)

1700*940*1400

Drive mode Chain / Servo drive
