Automatic Instant noodle Vermicelli packaging machine

Automatic Instant noodle Vermicelli packaging machine

The Instant noodle packaging machine is suitable for products that can be packaged by the packaging machine such as biscuits, bread, fruits, vegetables, energy bars, and fresh food. Packaging aids such as nitrogen filling and servo can be configured.

  • Machine type:

    VT-280
  • Packaging speed:

    20-100bag/min
  • Packaging size:

    60-280mm(width) 150-550mm(length)
  • Machine size:

    (L)4000×(W)960×(H)1550mm
  • Machine material:

    304 stainless steel
  • Product Details

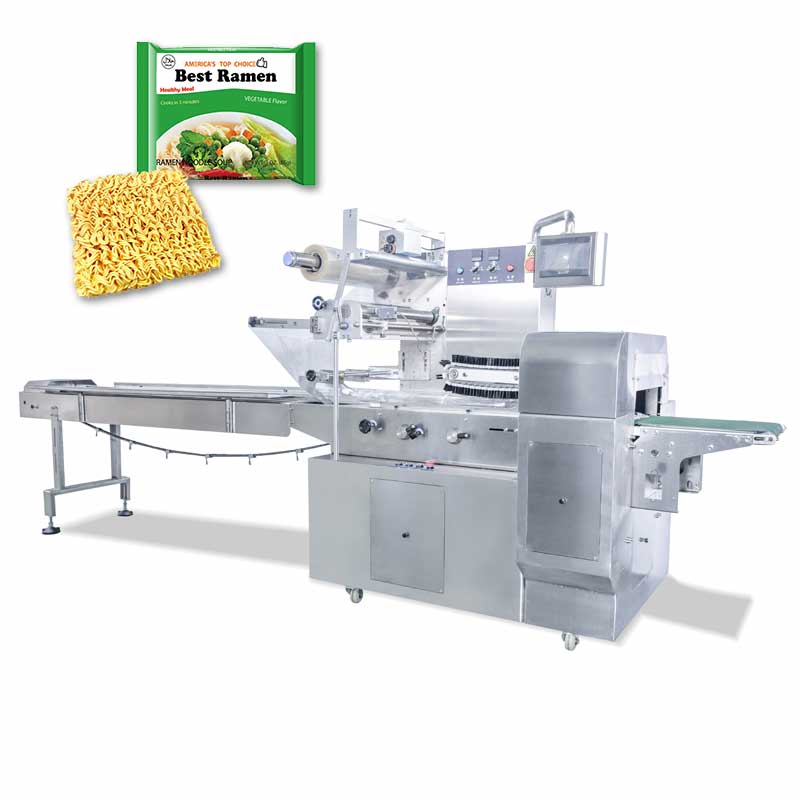

Automatic Instant noodle packaging machine VT-280


Applications:

Packaging various kinds of instant noodles.


Features:

1. Dual frequency conversion control, bag length can be set and cut in one step, saving time and film.
2. Interface features easy and quick setting and operation.
3. Self failure diagnosis, clear failure display.
4. High sensitivity photoelectric eye color tracing, numerical input of cutting sealing position for extra accuracy.
5. Temperature independent PID control, more suitable for packaging different materials.
6. Positioned stop function, without sticking knife or wasting film.
7. Simple driving system, reliable working, convenient maintenance.
8. All control is realized through software, easy for function adjusting and technical upgrade.

Technical parameters:

Food Packaging machine(Type) VT-280
(Film width) max: 580mm
(Bag length) 150-500 or 160-500mm
(Bag width) 60-280mm
(Product height) Max.85 or Max.110
(Film roll diameter) Max:380mm
(Packaging rate) 20-100bag/min
(Power) 220V 50/60Hz 3.5KW
(Machine size) (L)4000×(W)960×(H)1550mm
(Machine quality) about:650KG
(Remarks) Optional air filling device/Optional angle folding device
(Film material)
(Film material) OPP、PE、PVC、OPP/CPP、PT/PE、KOP/CPP

Bag type display


More Details




Leave A Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
