The packaging machine is suitable for Tableware,bar,cutlery,fork,spoon,etc.Self failure diagnosis, clear failure display.High sensitivity photoelectric eye color tracing, numerical input of cutting sealing position for extra accuracy.
Machine type:
VT-160Packaging speed:
30-200 Bag/MinPackaging size:
30-160mm(Width) 65-400mm(Length)Machine size:
(L)3600×(W)745×(H)1470mmMachine material:

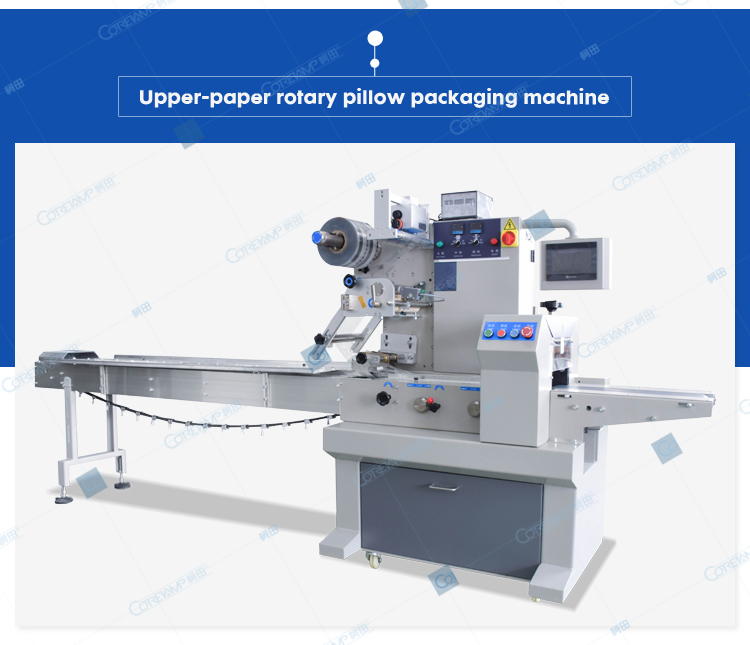

Carbon steelAutomatic Rotary Pillow Disposable Tableware/Bowel packaging machine VT-160
Applications:

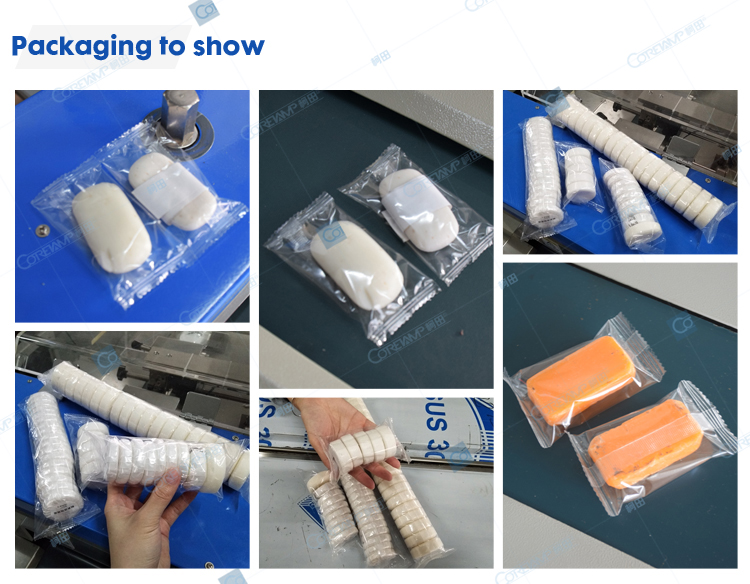

Packaging various kinds of tableware,cutlery.
Features:
1. Dual frequency conversion control, bag length can be set and cut in one step, saving time and film.
2. Interface features easy and quick setting and operation.
3. Self failure diagnosis, clear failure display.
4. High sensitivity photoelectric eye color tracing, numerical input of cutting sealing position for extra accuracy.
5. Temperature independent PID control, more suitable for packaging different materials.
6. Positioned stop function, without sticking knife or wasting film.
7. Simple driving system, reliable working, convenient maintenance.
8. All control is realized through software, easy for function adjusting and technical upgrade.
Techinical Parameters:
|
Model |
VT-160 |
|
film width |
Max.340 |
|
bag length |
65-200 or85-240 110-320 or 400mm |
|
bag width |
30-160 mm |
|
product height |
Max 35mm or 55mm |
|
film roll diameter |
max.380mm |
|
packaging rate |
20-200bag/min |
|
power |
220v 50/60Hz 2.6Kw |
|
machine size |
L:3600*W745*1470 mm |
|
machine quality |
about 450KG |
|
remarks |
optional air filling device/optional angle folding device |
|
film material |
OPP,PE,PVC.OPP/CPP,PT/PE,KOP/CPP |
Previous :
Fruit packaging machine VT-210Next :
Automatic Instant noodle Vermicelli packaging machineIf you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
