 Multi-function Vertical Pea Soy Granule Weighing packaging machine
Soy packaging machine Soy packaging machine Soy packaging machine

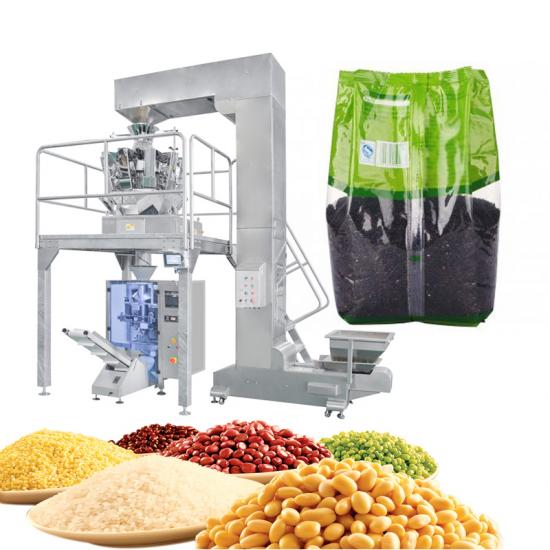

Multi-function Vertical Pea Soy Granule Weighing packaging machine

This packaging machine is suitable for high accuracy and esy fragile mate ria,

such as soy,pea,granule.coffee beans, rice, puffed food, dry fruit, crispy rice, elly, candy, pistachio, dumpling, pet food, small hardwarres, medicine.

Fully automatice feeding, measuring, bagging and with date printing, charging (Exhausting)

  • Brand:

    Coretamp or Custom

  • Product weight:

    650kg

  • Machine type:

    ZV-420A

  • Packaging speed:

    5-60 Bag/Min

  • Packaging size:

    60-200mm(Width) 80-300mm(Length)

  • Machine size:

    (L)1217*(W)1015*(H)1343mm

  • Machine material:

    304 stainless steel
Inquiry now Contact us

  • Product Details


Specifications:

Types ZV-420 ZV-520 ZV-620 ZV-720
Film width Max.420mm Max.520mm
 Max.620mm
 Max.720mm
Bag length 80-300mm 80-350mm 100-450mm 100-500mm
Bag width 60-200mm 100-250mm 65-300mm 65-350mm
Film roll diameter Max.320mm Max.320mm
 Max.320mm
 Max.320mm
Packing speed 5-60bag/min 5-60bag/min
 5-45bag/min
 5-40bag/min
Measuring range 2000ml 4000ml
 8000ml
 14000ml
Film thickness 0.04-0.08mm 0.04-0.012mm
 0.04-0.012mm
 0.04-0.012mm
Power supply 220V, 50/60HZ , 3KW 220V, 50/60HZ , 3KW
 220V, 50/60HZ , 3.2KW
 220V, 50/60HZ , 3.5KW
Machine size (L*W*H) L1217*W1015*H1343mm L1488*W1080*H1490mm
 L1488*W1180*H1550mm L1780*W1350*H2050mm
Machine weight about 650kgs about 680kgs about 700kgs about 750kgs
Film materail BOPP/CPP,  BOPP/VMCPP,  BOPP/PE,  PET/AL/PE ,  PET/PE



Option:

Two synchronous belt device, angle fold device, automatice rectifying device hole-puning device, link device.



Features:

1. New design with perfect fashion, more reasonable structure, more advanced technology.

2. Import PLC control system,colorful touch screen, easy operation.
3. Standard positioning with imported servo film transporting system and marek sensor,

superexcellent capability for complete machine, perfect packaging.
4. With auto warning protection function to minimize loss.
5. Various kinds of bag, it could provide the pillow bag, angle fold bag, hang hole bag, link bag,etc.

More Details

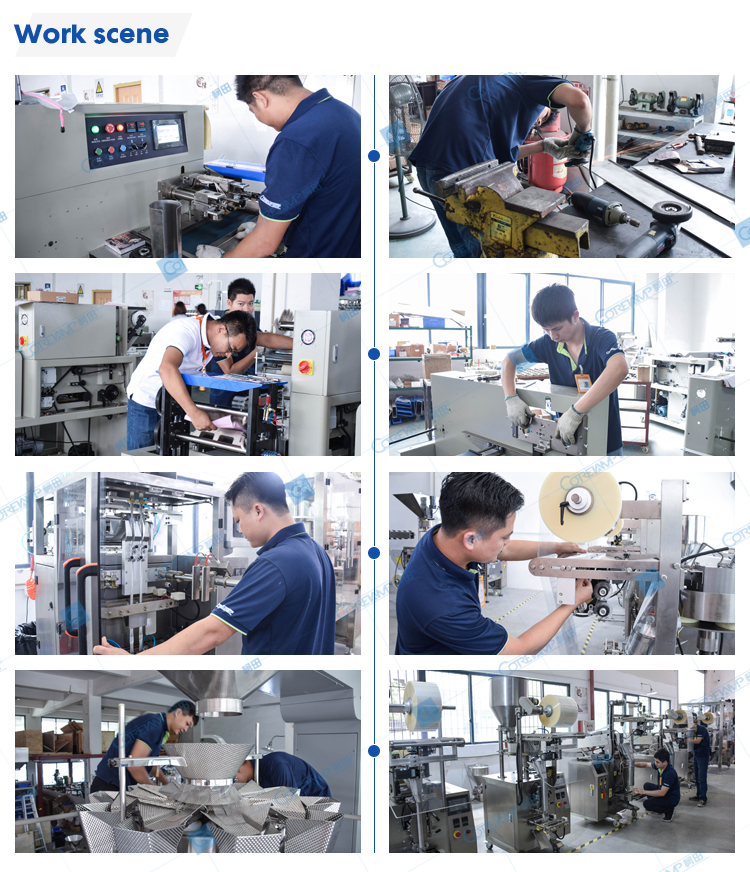

Our factory:

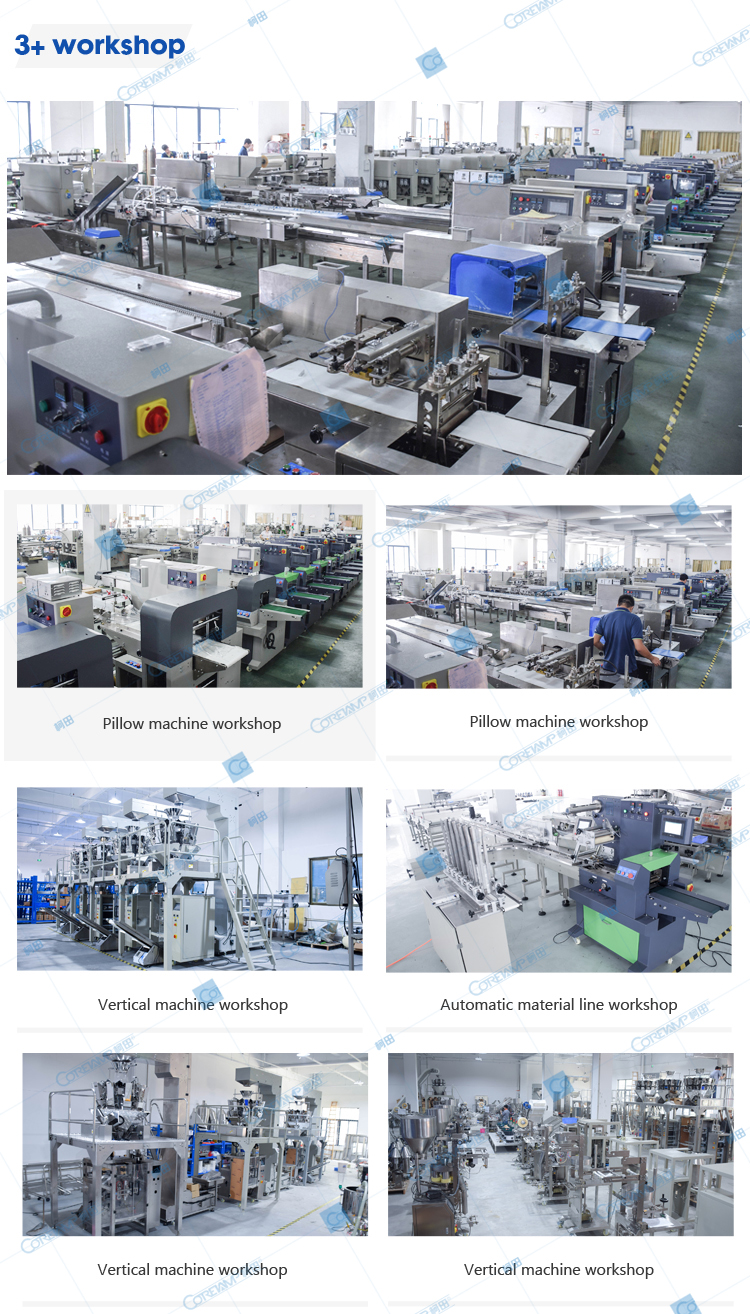

Including vertical machine workshop, flow machine workshop, raw material parts warehouse, machine parts production room, office.
